MovePathCursor()

Syntax

MovePathCursor(x.d, y.d [, Flags])

Moves the cursor of the vector drawing path to a new location. This also starts a new figure within the path, which means that a call to ClosePath() will draw a line back to this location.

Parameters

x.d, y.d	The new position for the path cursor.
Flags (optional)	Can be one of the following values: #PB_Path_Default : The new position is absolute (default) #PB_Path_Relative: The new position is relative to the last cursor position.

Return value

None.

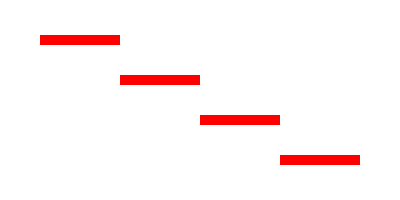

Example

  If OpenWindow(0, 0, 0, 400, 200, "VectorDrawing", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    CanvasGadget(0, 0, 0, 400, 200)

    If StartVectorDrawing(CanvasVectorOutput(0))

      MovePathCursor(40, 40)
      For i = 1 To 4
        AddPathLine(80, 0, #PB_Path_Relative)
        MovePathCursor(0, 40, #PB_Path_Relative)
      Next i

      VectorSourceColor(RGBA(255, 0, 0, 255))
      StrokePath(10)

      StopVectorDrawing()
    EndIf
  EndIf

See Also

ClosePath(), AddPathLine(), FillPath(), StrokePath()

Supported OS

All
